NEC NP1150 3700-lumen Professional Installation Projector/Network/USB/VGA/RCA - TheITmart

NEC NP1150 3700-lumen Professional Installation Projector/Network/USB/VGA/RCA

$349.99 $399.99

Product Vendor : NEC

Availability : Out Stock

Add to wishlist



  • description
  • product review
  • Shipping & RETURN
Condition:
“Item is in used working and good condition. Projector+Power cable only, no other accessories.”

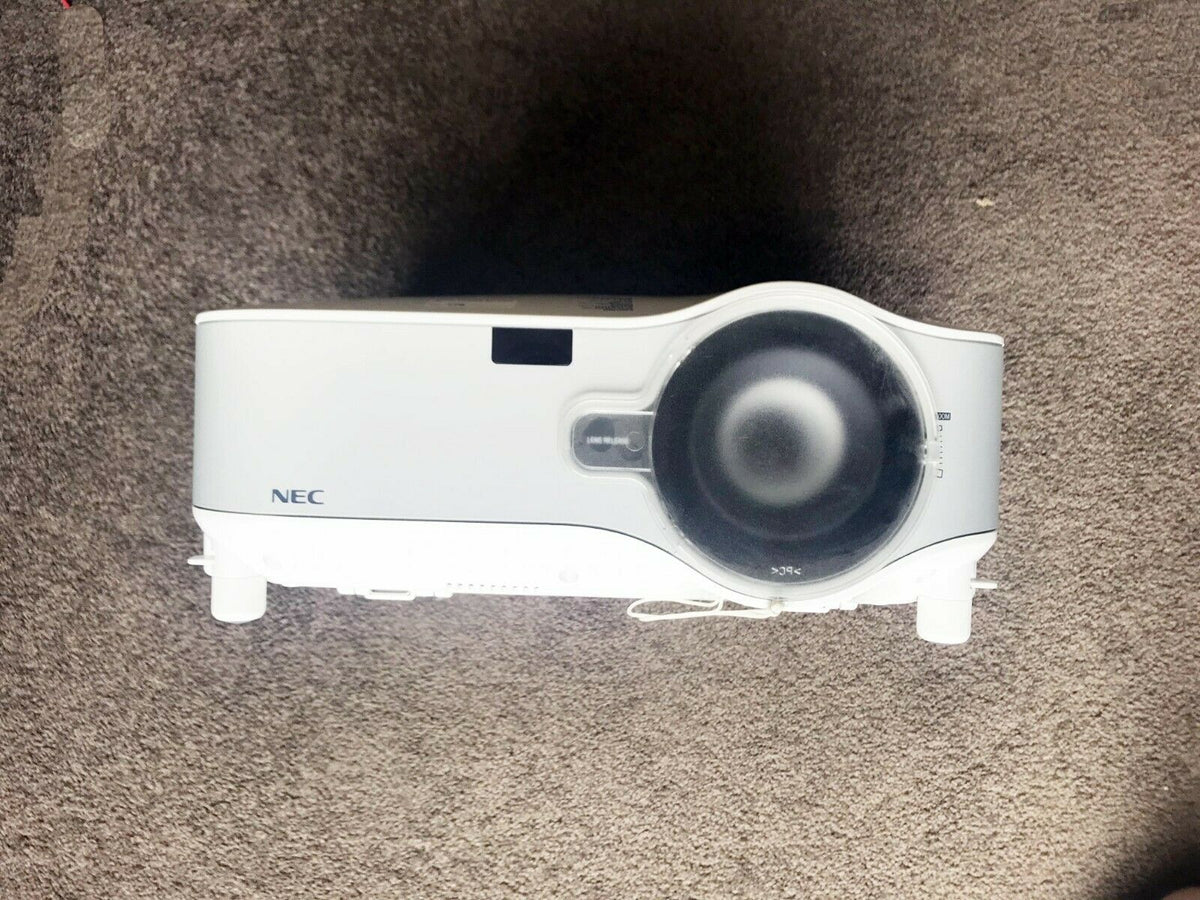

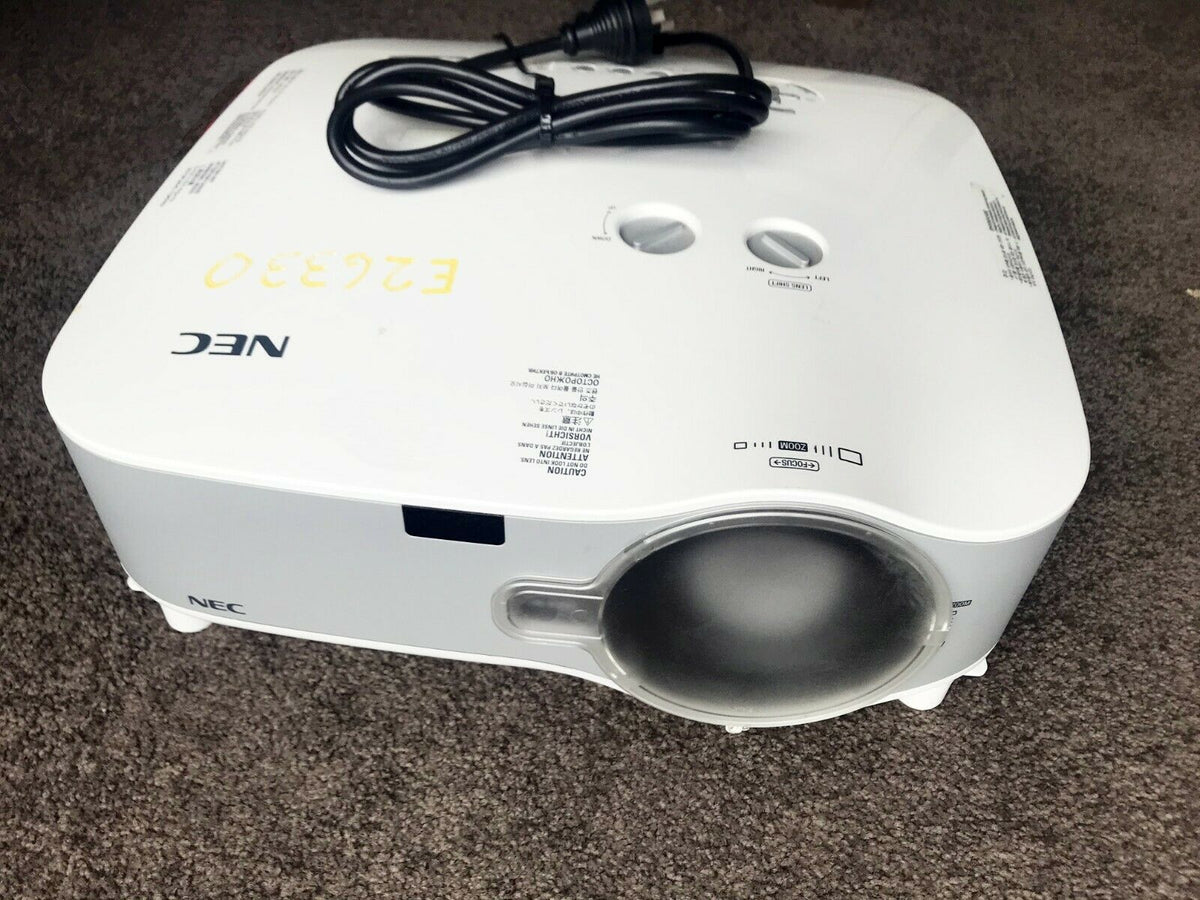

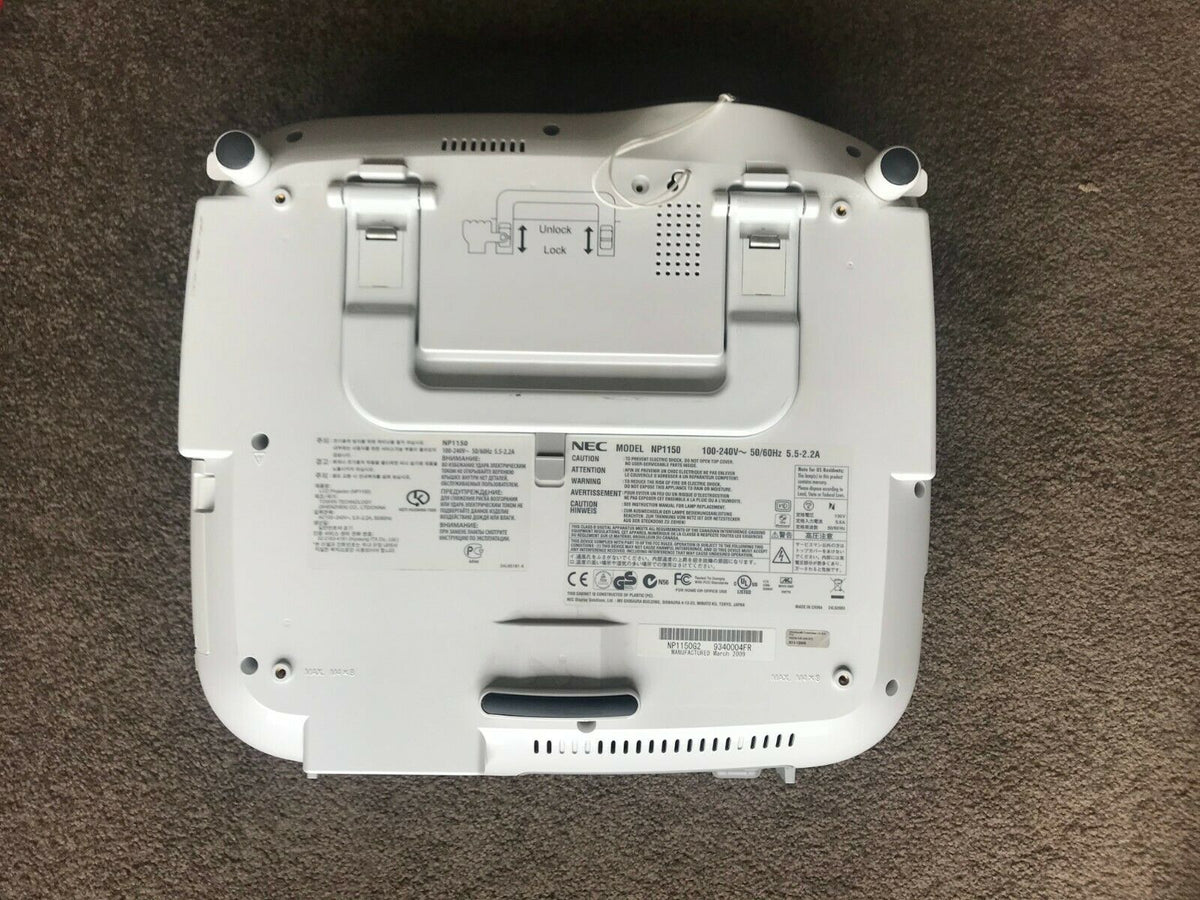

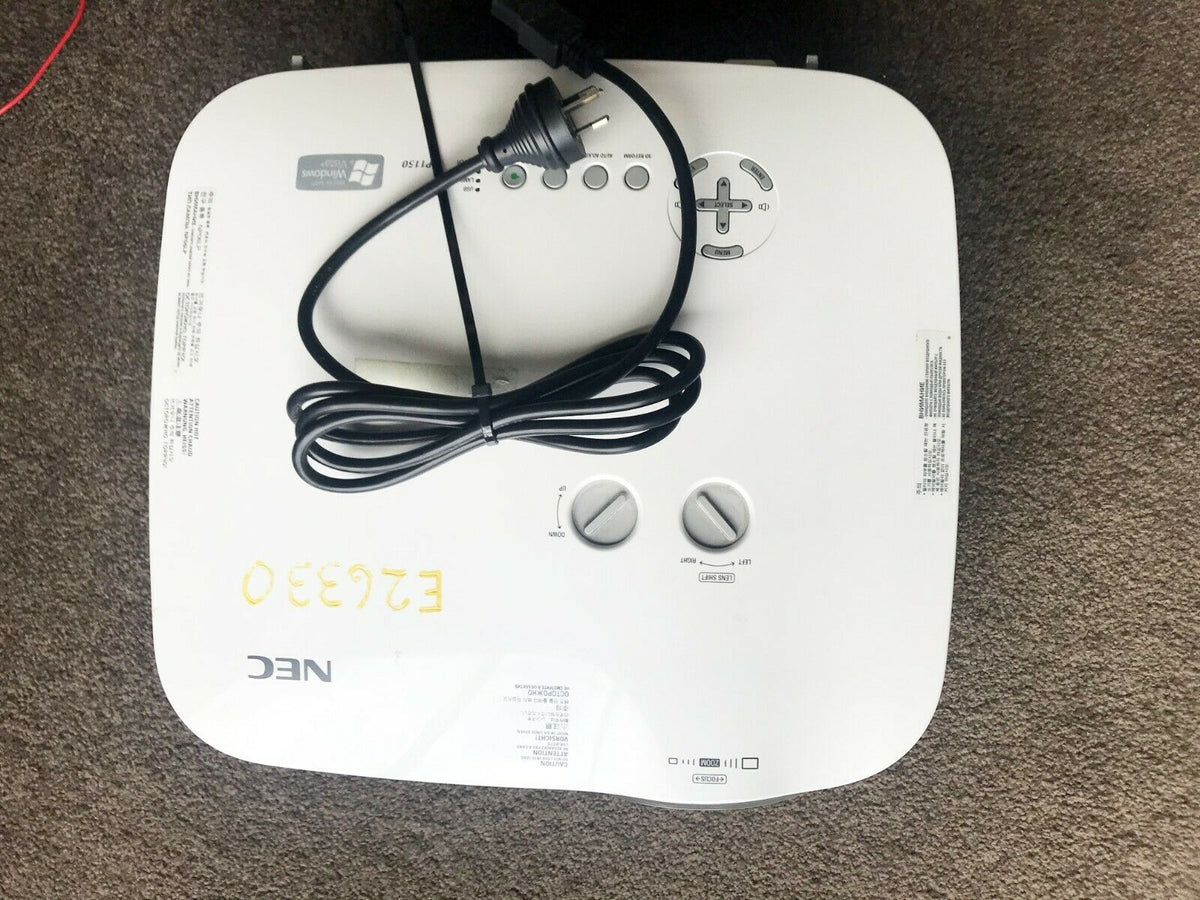

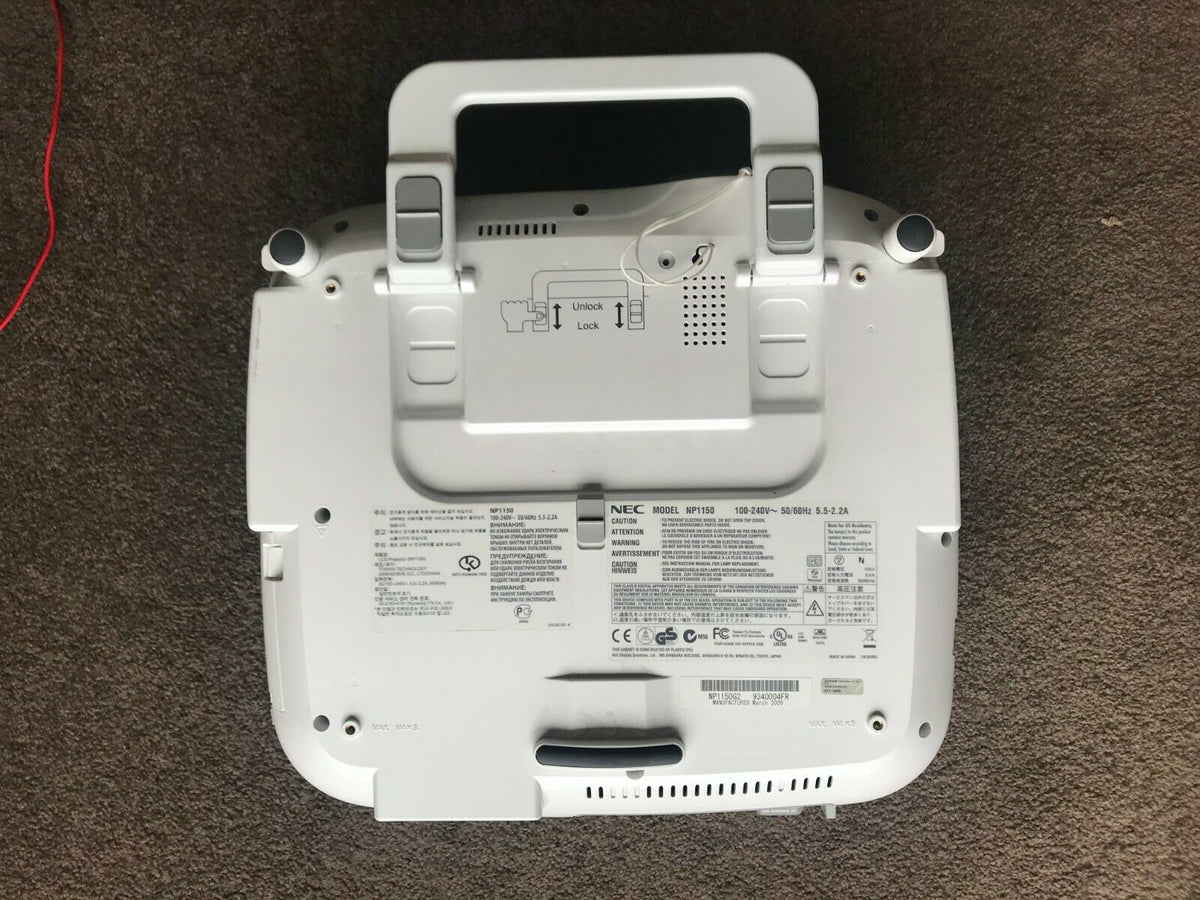

NEC NP1150 3700-lumen Professional Installation Projector
TECHNICAL SPECIFICATIONS:

Specifications
Model Name
NP2150
LCD Panel *1 0.8-inch (1024x768) p-Si TFT active-matrix with MLA (Aspect Ratio 4:3)
Lens Manual Zoom / Focus Throw ratio 1.5-2.0:1, F1.7-2.2, f=24.4-32.5mm (Standard Lens)
Manual Shift *2 Horizontal : max±0.1H / Vertical : max+0.5V
Projection Distance 0.89m to 20.8m (Standard Lens)
Projection Angle 0 to 14.4deg (Wide) / 0 to 10.8deg (Tele)
Lamp (Eco Mode) 330W (264W) AC 300W (264W) AC
Lamp Life *3 (Eco Mode) 2,000H (3,000H)
Light Output Normal Mode 5,000 ANSI lumens 4,200 ANSI lumens 3,700 ANSI lumens
Eco Mode Approx. 80% of Normal Approx. 88% of Normal
Contrast Ratio (White / Black) 600 : 1
Quietness(Eco Mode) 38dB (31dB) 34dB (30dB) 33dB (30dB)
Image Size (Diagonal) 30inch to 500inch (0.76m to 12.7m) (Standard Lens)
Maximum Resolution UXGA 1,600 x 1,200 (1,400 x 1,050 @ 60Hz on DVI-D)
Synchronization Range Horizontal 15kHz to 108kHz (RGB : 24kHz or over)
Vertical 48Hz to 120Hz
Video Bandwidth RGB : 165MHz (Maximum sampling rate)
Colour Reproduction Full Colour, 16.7Million Colours Simultaneously

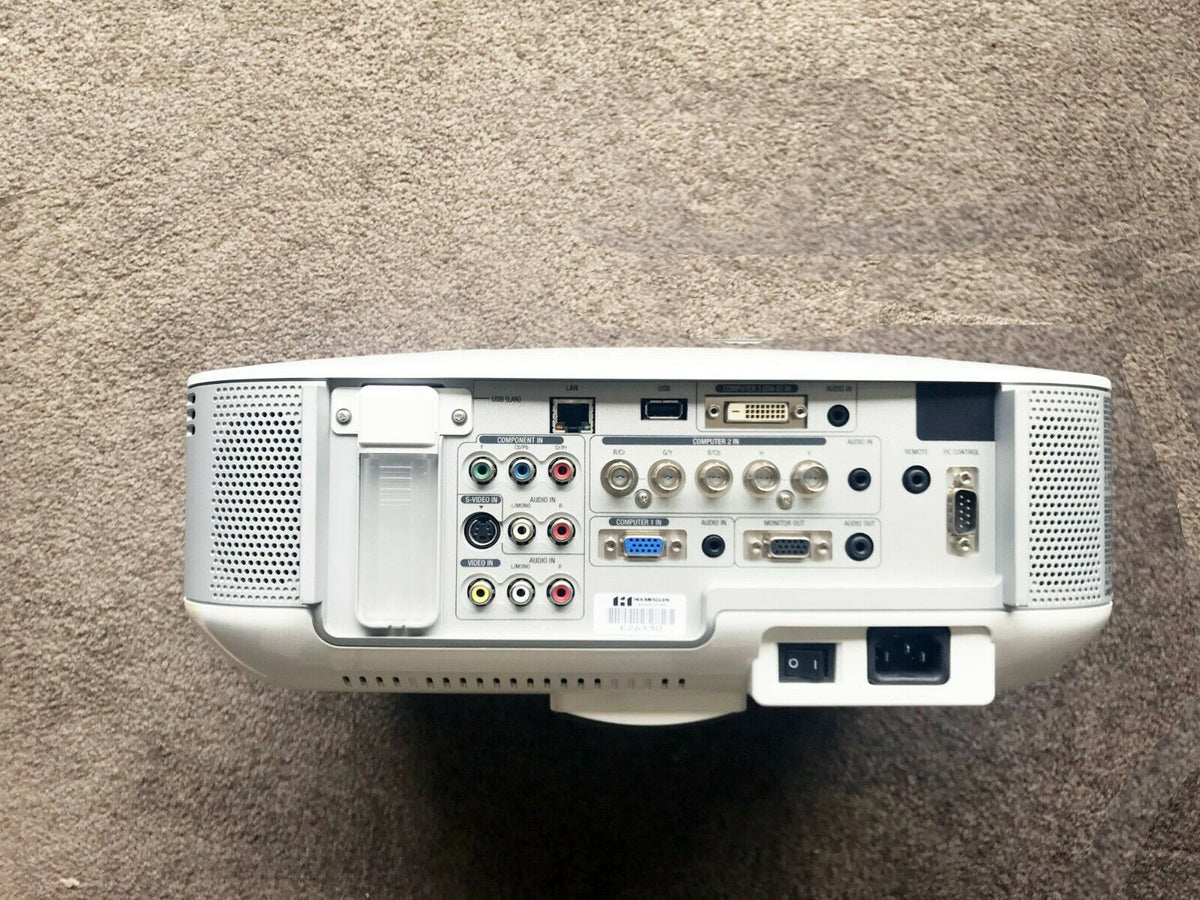

Input Terminals 3 Computer Input 1 D-Sub Mini 15pin (Computer 1 IN)
1 BNC x 5 (Computer 2 IN)		 Compatible signals VGA, SVGA, XGA, SXGA, SXGA+, UXGA
RGB (Analog) 0.7Vp-p/75Ω
H / V Sync 4.0Vp-p/TTL Level
Composite Sync 4.0Vp-p/TTL Level
Sync on G 1.0Vp-p/75Ω(with Sync) Negative Polarity
2 Stereo Mini Jack Stereo L / R 0.5Vrms/22kΩ or over
1 DVI-D (Computer 3 IN) RGB (Digital) T.M.D.S. Specification, with H.D.C.P. , Max Resolution : SXGA+/60Hz
1 Stereo Mini Jack Stereo L / R 0.5Vrms/22kΩ or over
3 Component Input 1 RCA pin x 3
1 D-Sub Mini 15pin
(Sharing with Computer 1 IN)
1 BNC x 5
(Sharing with Computer 2 IN)		 Y 1.0Vp-p/75Ω(with Sync)
Cb•Cr (Pb•Pr) 0.7Vp-p/75Ω
Compatible signals 480i, 480p, 720p, 1080i/60Hz
576i, 576p, 1080i/50Hz
DVD Progressive (50/60Hz)
1 RCA pin × 2 Stereo L
(MONO) / R		 0.5Vrms/22kΩ or over
Audio Input is Sharing with Computer 1&2 Same with Computer
1 Video Input 1 RCA pin Composite Video NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM
1.0Vp-p/75Ω
1 RCA pin x 2 Stereo L (MONO) / R 0.5Vrms/22kΩ or over
1 S-Video Input 1 Mini DIN-4pin Y 1.0Vp-p/75Ω
C 0.286Vp-p/75Ω
Audio Input is Sharing with Video Same with Video
Output Terminals 1 Monitor Output 1 D-Sub Mini 15pin Selected Computer 1•2 or Component Signal
1 Audio Output 1 Stereo Mini Jack Stereo L / R Variable Output Level
Selected Computer1•2•3, Component,
Video or S-Video Signal
Control Terminals 1 USB Port Type A USB2.0 High Speed
1 LAN Port RJ - 45 100BASE-TX/10BASE-T
1 Wireless LAN (USB Port) Type A IEEE 802.11b/g (NP01LM1 / NP01LM5)
1 REMOTE Stereo Mini Jack Wired Remote Control
1 PC Control D-sub 9pin RS-232C
Built-In Speaker 5W+5W Stereo
Keystone Correction Horizontal Manual Approx.± Max 40 degrees
(Standard Lens)*4
Vertical Manual Approx.± Max 30 degrees
(Standard Lens)*4
Environment Operational Temperatures 5° C to 40° C(Eco Mode selected automatically at 35° C to 40° C), 20% to 80% Humidity
(Non-Condensing)
Storage Temperatures -10° C to 50° C, 20% to 80% Humidity
(Non-Condensing)
Power Requirement 100 to 240V AC, 50Hz/60Hz
Input Current 5.9-2.3A 5.5-2.2A
Power Consumption Normal Mode 490W 460W
Eco Mode 410W
Standby Mode 26W
Regulations For United States / Mexico UL Approved (UL 60950-1), NOM-001-SCFI-1993, Meets FCC Class B Requirements
For Canada C-UL Approved (CSA 60950-1), Meets DOC Canada Class B Requirements
For Asia / Oceania IEC60950-1, Meets AS/NZS CISPR.22 Class B
For Europe Meets EMC Directive (EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3), Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)
For Korea EK(safety : K60950-1, EMC : K00022, K00024, K61000-3-2, K61000-3-3)
For China GB4943, GB9254, GB17625.1
Dimensions (W x H x D) 399mm x 150.5mm x 358mm
(Not Including Protrusions)
Net Weight 7.3kg
*1 : LCD Panel technology consists of fine picture cells with more than 99.99% of the cells being active.
*2 : The Lens Shift function is not available for the NP01FL.
*3 : Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it dose not refer to the warranty period for the lamp.
*4 : When the lens shift is set to the center. When the lens shift is used and yet the image is not displayed in the center of the screen, the adjustable range will be increased or decreased. Image is projected in Wide (Zoom lever).
Please note: Specifications is for customer guidance only, make your own search of the item before purchase.
