Samsung SNB-3002 IP Network Box Security Camera/Multiple Streaming/Bi Dirc Audio

$99.99 $199.99

Product Vendor : Samsung

Availability : In Stock


Product Description

Samsung SNB-3002 is a 4CIF fixed day/night network with smart features like WDR, POE and multiple codec for a great surveillance solution. This model of boxed camera is able to yield 4CIF resolution video images up to 30 frames per second. This camera has the Wide Dynamic Range (WDR) feature that is able to take dark lighting conditions and make it usable in these challenging applications. This feature is designed to let the camera adjust to different lighting conditions like those with strong and light contrast. This camera has a true day/night function (ICR) with the aim of producing quality videos given the low light conitions. Video is streamed by your choice of the triple codecs that device that is capable of streaming data in different location. These videos are capable of being streamed in compressed formats such as H.264, MPEG-4 and MJPEG. Additional feature rich options include PoE, micro SD slot, Onvif and bi-Directional Audio. PoE makes sure that the data coming from the device is taken is secured before it reaches the monitors and other viewing and recording devices. Micro SD slot on the other hand lets the user store the data taken through a compatible SD card. And bi-Directional Audio poses the ability of the security camera to deliver quality audio in real time in every monitor that is connected to its system. All of these features come in a 2.83" x 2.36" x 5.39" surveillance camera weighing less than a pound. As it comes heavy in features, it goes light in weight.

Item Condition: Opened – never used: “In Brand new condition, box opened for inspection purposes only. 3 Months warranty.”

Samsung SNB-3002 Main features:

Max. 30(25)fps at 4CIF resolution
H.264, MPEG-4, MJPEG multiple codec
Multiple streaming
PoE, SD memory, Bi-directional audio support
Tampering detection

Samsung SNB-3002 Specifications:

Imaging Device 1/3" Super HAD PS CCD
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System Progressive (If WDR on, Interlaced scan)
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines
Min. Illumination Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x)
B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x)
S / N Ratio 52dB
Video Output CVBS : 1.0 Vp-p / 75O composite
Lens Type Manual / DC auto iris
Mount Type C / CS
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W / External B/W
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 128x, 52dB 160x, 52dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User)
Digital Image Stabilization Off / On
Motion Detection Off / On (4 programmable zones)
Privacy Masking Off / On (12 polygonal programmable zones, 4 point polygonal method)
Sens-up (Frame Integration) Off / Auto (2x ~ 512x)
Gain Control AGC (Low / Middle / High)
White Balance ATW1 / ATW2 / AWC / 3200K / 5600K
Electronic Shutter Speed Off / Auto (1/100 ~ 1/10Ksec) Off / Auto (1/120 ~ 1/10Ksec)
Flip / Mirror Off / On
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
Intelligent Video Analytics Tampering detection
Alarm I/O Input 1ea / Output 1ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264, MPEG-4, MJPEG
Resolution 704 x 480, 640 x 480, 352 x 240 704 x 576, 640 x 480, 352 x 288
Max. Framerate 30fps 25fps
Video Quality Adjustment H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Mic / Line in, Line out
Audio Compression Format G.711 u-law
Audio Communication Bi-directional audio
IP IPv4, IPv6
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot SD/SDHC memory slot
ONVIF Conformance Yes
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
Central Management Software NET-i viewer
Operating Temperature / Humidity -10C ~ +50C (+14F ~ +122F) / 20% ~ 80% RH
Storage Temperature / Humidit -30C ~ +60C (-22F ~ +140F) / Less than 90% RH
Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 6W
Color / Material Silver / Metal

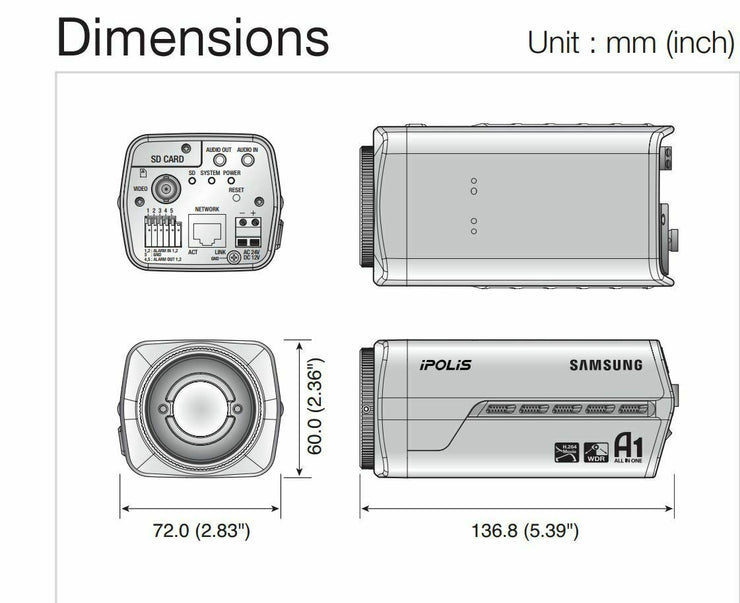

Dimensions (WxHxD) 72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39")
Weight 440g (0.97 Ib)
