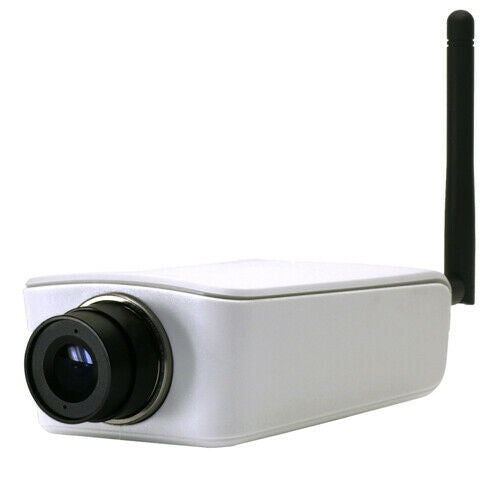

Zavio F510E Wireless IP Camera/30 fps/Two-way Audio with Built-In Microphone


Product Vendor : Zavio

Availability : In Stock


The F510E is a full featured, yet cost-effective box IP camera for professional security surveillance and remote monitoring, which makes it an ideal choice for securing offices, shops and other indoor facilities.


  • Maximum Resolution 640x480 (VGA) provides superior image quality
  • Simultaneous MPEG-4 and Motion JPEG video stream
  • Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use
  • Wireless (IEEE 802.11b/g) Networks Connection (F510E)
  • Two-way Audio with Built-In Microphone
  • Optimal Synchronization of Audio and Video
  • Support Live Video Viewing on Microsoft Live Messenger
  • Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
  • Mobile Phone Live Image through 2.5 WAP
  • Multi-level Password Protection for Restricting Camera Access
  • Built-In Multi-Window Motion Detection (3 detection areas)
  • Video Buffer makes the Streaming Smoother
  • UPnP for Fast and Easy Installation
  • DDNS Supported
  • Bundled 16 Channel Surveillance Software
  • User-friendly & Multi-lingual UI

    Zavio F510W wireless IP Camera
    - Models: ZAVIO F510E/F510W
    - Wireless IEEE 802.11b/g (F510W)
    - Image Sensor: 1/4" Progressive CMOS Sensor
    - Lens: F1.6 4.0mm, CS-Mount lens
    - Zoom: 10x Digital
    - Minimum Illumination: 0.5 Lux
    - Video Compression: Motion JPEG & MPEG-4
    - Max Resolution: 640 x 480 (VGA)
    - Frame Rate: Motion JPEG: Up to 30 fps in all resolutions
    MPEG-4: Up to 30 fps in all resolutions
    - Video Streaming:

    Simultaneous Motion JPEG and MPEG-4
    Controllable frame rate and bandwidth
    3GPP/ISMA RTSP compatible

    - Audio:

    Two-way (full duplex)
    Built-in microphone
    Audio compression: G7.111PCM, 8kHz, 64kbit/s

    - Alarm and Event Management: Built-in multi-window motion detection
    Image upload over FTP, e-mail and HTTP
    Notification over TCP and e-mail
    - Connectors:

    Ethernet – RJ45 for 10/100 Base-T
    DC power jack
    Terminal blocks for 1 alarm input, 1 output
    Reset push switch
    3.5mm jack for Mic/Line in, 3.5mm jack for line out

    - Processors and Memory: ARM9 based 32-bit RISC CPU
    32MB RAM, 8MB Flash
    - Operation System: Linux 2.4
    - Power: 12V DC, max 5 W
    PoE Built-in IEEE 802.3af Class 0 (F510E)
    - Operating Conditions: 0º - 50 ºC (32º - 122ºF)
    Humidity 20 - 80% RH (non-condensing)
    - Minimum System Requirements: Pentium III CPU 500 MHz or higher,
    or equivalent AMD 128MB RAM
    Windows 98,ME,2000,XP,Vista
    Internet Explorer 6 or later
    - Supported Protocols: Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
    - Video Surveillance Software: Professional surveillance application for
    viewing, recording and archiving up to 16
    -Approvals: CE,FCC,RoHS

    - Dimensions:

    128 x 71 x 42 mm

    What's In Box?

    Power Adaptor
    1/3" CS 4mm F1.6 Lens
    Camera Mounting Bracket
    Instruction Manual
